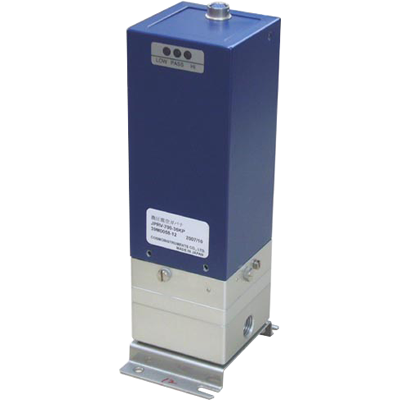

PRV-700
微低圧をコントロールする電空レギュレータです。
0~5Vの電圧で簡単に微低圧をコントロールし、大きな流量を流すことができます。
制御圧レンジ | 微圧用 0~7kPa 低圧用 0~35kPa |
---|---|
制御設定電圧 | 0~5VDC |
最大制御流量 | 7kPaレンジ:120L/min(1次圧50kPa) 35kPaレンジ:200L/min(1次圧100kPa) |
制御精度 | ±0.2% of F.S. |
操作電圧 | DC24V±2V |

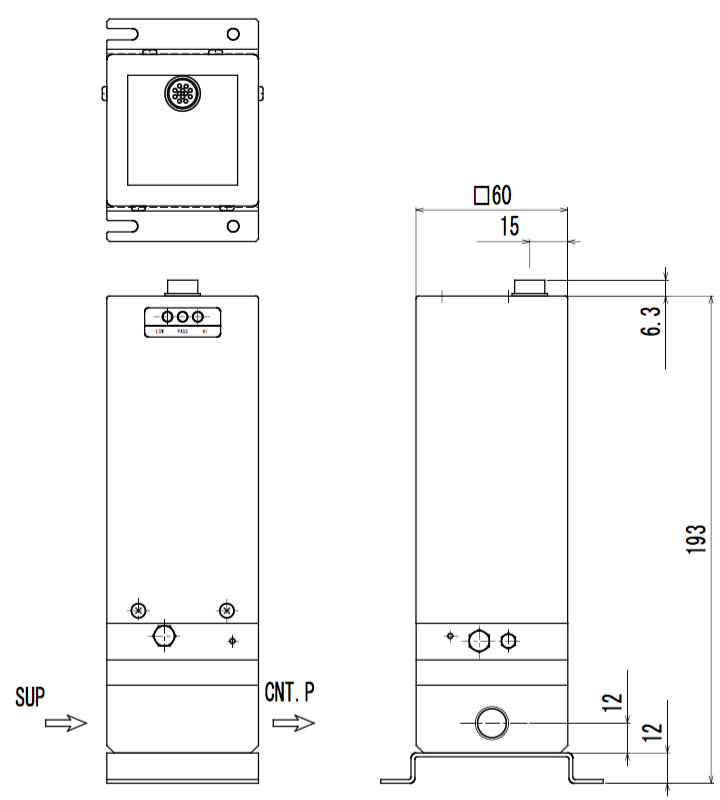

外観寸法 | 60×60×200mm |
質量 | 約1kg |
