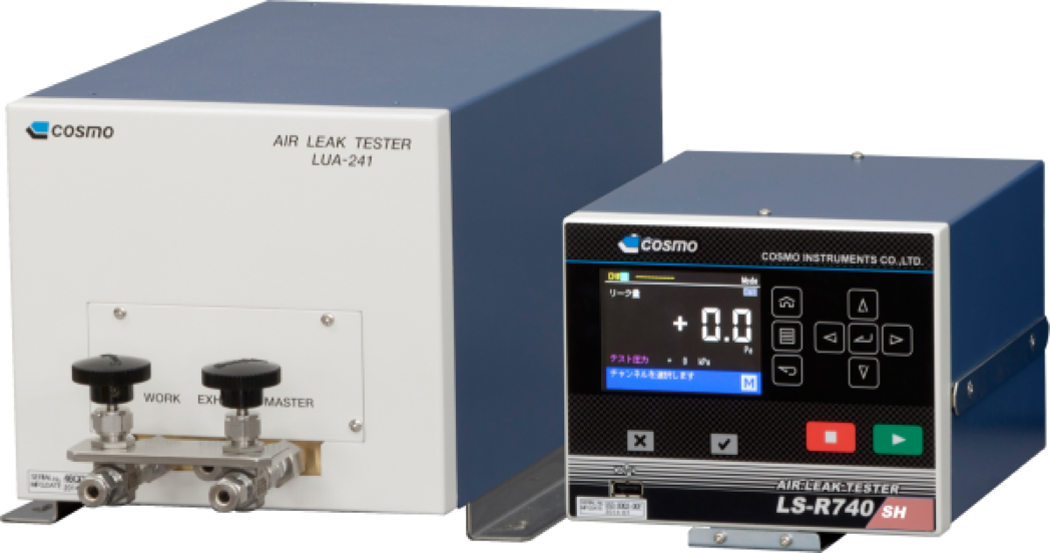

LS-R740 (SH)
超高圧の厳しいテスト環境下において、高感度な検査を可能とした差圧式エアリークテスターです。
最高16MPaまでの空気圧でテストが出来ます。
差圧 |
分解能 | 1 Pa | |
表示範囲 | ±9.999kPa、(精度保証範囲±10kPa) | ||
精度 | ±5% of rdg ±1Pa、但し500Pa以下は±2Pa | ||
センサー過圧 | 20 MPa | ||
単位 |
テスト圧 |
kPa,MPa | |
(海外用非SI単位kg/cm2, PSI, bar, mmHg,他) | |||
リーク量 |
Pa, kPa, mL/s, mL/min, L/min, Pa・m3/s, | ||
E-3 Pa・m3/s, Pa/s, Pa/min, *Pa/s, *Pa/min | |||
(海外用非SI単位mmH2O, mmHg, inH2O, 他) | |||
K(Ve) | mL, L (海外用非SI単位 in3, ft3) | ||
(リーク係数) | |||
リーク量表示 | 4桁、サンプリングレイト10回/秒 | ||
リークリミット | ±999.9Pa以下 | ||
チャンネル数 | 32ch(0~31) | ||
タイマ設定範囲 | 999.9 秒(分解能0.1秒) | ||
電 源 | AC100~240V±10%, 50/60Hz,70VA max | ||
環境温度 | 5~45 ℃ | ||
湿 度 | 80 %RH以下、ただし結露なきこと | ||
質 量 | コントローラー約2.6kg、空圧ユニット約 15 kg | ||
空圧源 | クリーンエアーを使用。元圧はテスト圧より高い圧力が必要です。 | ||
パイロット圧設定 | 500~700kPaの範囲の調圧されたクリーンエアーを印加します。 | ||
配管接続口径 |
パイロットエア源:Rc1/4 | ||
テスト圧源:Ф6mm:スウェージロック(ワーク配管、マスター配管) | |||
CPU | SH-2A 144MHz, DRAM8MB | ||
RS-232C (D-sub 9ピン) |
I/F固定長出力 | リークデータの他に設定値も同時出力されます。 | |
ID/F固定長出力 | |||
T/F固定長出力 | リークデータのみの出力 | ||
その他 | 特殊仕様フォーマット | ||
USBポート |
データ出力 | 判定、リーク値、テスト圧、CH #、 時間 他 | |
設定値出力 | 全設定画面の設定値 | ||
標準取付品及び付属品 |
パイロット圧用フィルターレギュレーター、クイック取付金具、 | ||
I/Oコネクター、電源コード 、検査成績書、 | |||
取扱説明書(CD)、トレーサビリティー関係書類 |
LS-R740SH- ①②③
① | テスト圧 | 超高圧10MPa | H100 | 使用範囲 5.0~10.0MPa (PS 10MPa) |
超高圧16MPa | H160 | 使用範囲 5.0~16.0MPa (PS 20MPa) | ||
② |
オプション |
パイロット側フィルター ケース | RX02 | パイロット圧接続口のフィルターがナイロン製になります。 |
接続口 NPT | PX1 | パイロット圧接続口がNPT1 /4 になります | ||
パネルマウント | P | コントローラーがパネルマウント仕様になります。 | ||
③ | ケーブル 長さ指定 |
ユニット間ケーブル3m | S3 | 標準 |
ユニット間ケーブル5m | S5 | オプション | ||
ユニット間ケーブル10m | S10 | オプション |

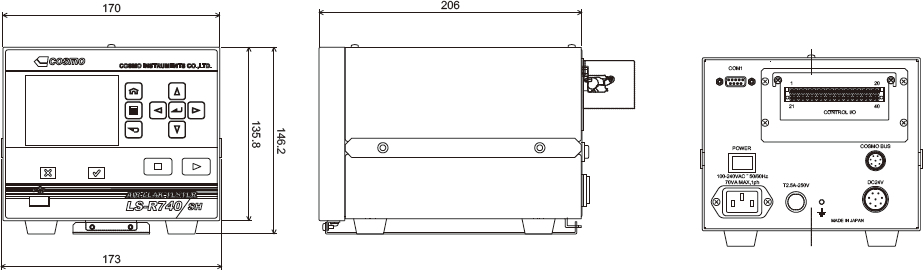

コントローラー

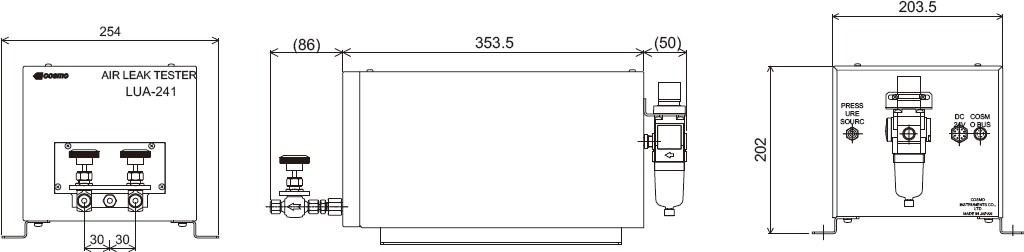

空圧ユニット
