LS-R740 (SS)
差圧 | 分解能 | 0.1 Pa |
---|---|---|
表示範囲 | ±999.9Pa、(精度保証範囲±1000Pa) | |
精度 | ±2.5% of rdg ±1Pa、但し50Pa以下は±2Pa | |
センサー過圧 | 5 MPa | |
表示単位 | テスト圧 | kPa,MPa (海外用非SI単位kg/cm2, PSI, bar, mmHg,他) |
リーク量 | Pa, kPa, mL/s, mL/min, L/min, Pa・m3/s, E-3 Pa・m3/s, Pa/s, Pa/min,*Pa/s, *Pa/min (海外用非SI単位mmH2O, mmHg, inH2O,他) |
|
K(Ve)(リーク係数) | mL, L (海外用非SI単位 in3, ft3) | |
リーク量表示 | 4桁、サンプリングレイト10回/秒 | |
リークリミット | ±999.9Pa以下 | |
チャンネル数 | 32ch(0~31) | |
タイマ設定範囲 | 999.9 秒(分解能0.1秒) | |
電 源 | AC100~240V±10%, 50/60Hz,70VA max | |
環境温度 | 5~45 ℃ | |
湿 度 | 80 %RH以下、ただし結露なきこと | |
質 量 | コントローラー約2.6 kg、 空圧ユニット約 4.4 kg | |
空圧源 | クリーンエアーを使用。元圧はテスト圧及びパイロット圧より高い圧力が必要。 | |
パイロット圧設定 | 設置搭載されているパイロット圧用フィルター レギュレーターで設定: 設定範囲400~700kPa |
|
配管接続口径 | Ф6mmワンタッチジョイント:パイロットエア・テスト源 特殊ジョイント:ワーク配管、マスター配管 |
|
CPU | SH-2A 144MHz, DRAM8MB | |
RS-232C (D-sub9ピン) |
I/F固定長出力 ID/F固定長出力 |
リークデータの他に設定値も同時出力されます。 |
T/F固定長出力 | リークデータのみの出力 | |
その他 | 特殊仕様フォーマット | |
USBポート | データ出力 | 判定、リーク値、テスト圧、 CH#、時間、他 |
設定値出力 | 全設定画面の設定値 | |
標準取付品及び付属品 | パイロット圧用フィルターレギュレーター、クイック取付金具、
I/Oコネクター、電源コード、検査成績書、 取扱説明書(CD)、トレーサビリティー関係書類 |
LS-R740SS- ①②③④⑤
① | 計測回路 | Y回路 | Y | テスター内容積を最小化した検出回路 |
---|---|---|---|---|
② | テスト圧 | 低圧用 | L | 使用範囲 10 ~ 100 kPa |
中圧用 | M | 使用範囲 50 ~ 700 kPa | ||
負圧用 | V | 使用範囲 -5 ~ -100 kPa | ||
③ | オプション | ALC0.1付 | K01 | 容積変化範囲0~0.1mL |
ALC0.01付 | K001 | 容積変化範囲0~0.01mL | ||
CALポート付 | JX | リークマスターを取付可能 | ||
パネルマウント | P | コントローラーがパネルマウント仕様となります。 | ||
④ | センサー感度 | Ks=0.005mL/kPa | KX1 | 標準 |
Ks=0.0025mL/kPa | KX05 | オプション | ||
⑤ | ケーブル長さ指定 | ユニット間ケーブル3m | S3 | 標準 |
ユニット間ケーブル5m | S5 | オプション | ||
ユニット間ケーブル10m | S10 | オプション |

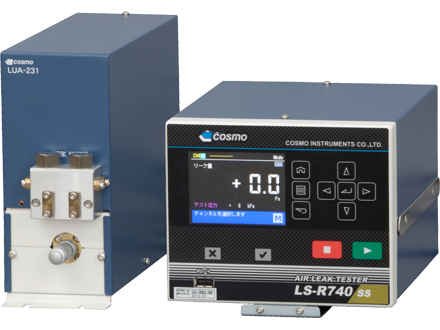

コントローラー
空圧ユニット
