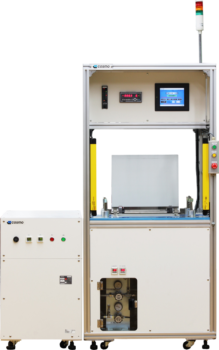

Helium Leak Test
真空法 ワーク内を真空にする方法 ● 真空吹付け法 ● 真空フード法 |
加圧法 ワーク内にヘリウムガスを加圧する方法 ● スニファー法 ● 真空ベルジャー法 ● 加圧積分法 ● ボンビング法(ワークに加圧口がないもの) |
ランニングコストを低減させるヘリウムガスミキサー・ヘリウムガス回収装置もございますので別途ご相談ください。
イニシャルコスト・ランニングコストによりご提案いたします。
テスト方法 | 漏れ検出 精度 |
全体の 測定 |
漏れ箇所 特定 |
自動化 | イニシャル コスト |
ランニング コスト |
メンテナン スコスト |
対象製品 |

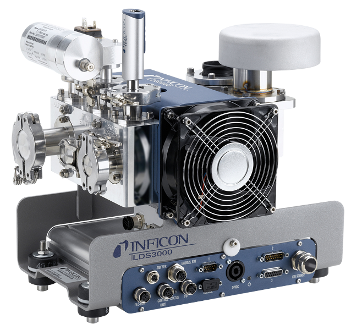

真空吹付法 | 1E-09Pa・m3/sec以上 | × | ○ | △ | ○ | △ | △ | ![]() LDS3000 |
真空 フード法 |
1E-09Pa・m3/sec以上 | ○ | × | ○ | △ | △ | △ |
テスト方法 | 漏れ検出 精度 |
全体の 測定 |
漏れ箇所 特定 |
自動化 | イニシャル コスト |
ランニング コスト |
メンテナン スコスト |
対象製品 |
真空 ベルジャー法 |
1E-07Pa・m3/sec以上 | ○ | × | ○ | × | × | × | ![]() LDS3000 |
ボンビング法 | 1E-09Pa・m3/sec以上 | ○ | × | ○ | ○ | △ | × | |

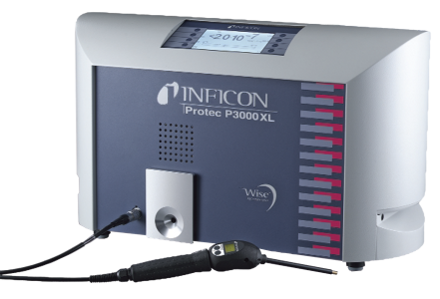

スニファー法 | 1E-06Pa・m3/sec以上 | × | ○ | △ | ○ | × | △ | ![]() P3000(XL) |
加圧積分法 | 1E-05Pa・m3/sec以上 | ○ | × | ○ | △ | × | △ | ![]() LDS3000AQ |
ワーク内を真空排気して、外側からスプレーガンでヘリウムを吹付けた時にワーク内に漏れてきたヘリウムを検出する方法です。
ワーク内を真空排気して、外側をフードで覆い、フード内にヘリウムを加圧してワーク内に漏れてきたヘリウムを検出する方法です。
ワーク内を真空引き後、ヘリウムガスを加圧して、外側に漏れたヘリウムをスニファープローブで吸引して漏れを検出する方法です。
ワークをチャンバーの中に入れ、ワーク内を真空引き後、ヘリウムを加圧してチャンバー内を真空排気して真空のチャンバー内に漏れたヘリウムを検出する方法です。
ワークをフードの中に入れ、ワーク内を真空引き後、ヘリウムを加圧して漏れ箇所からフード内に漏れるヘリウムを一定時間溜込み、フード内に溜まったヘリウム(濃度)を検出する方法です。
ワークをタンク内に入れ、一定時間真空引き後、ヘリウムで一定時間加圧放置してその後、タンクからワークを取出しチャンバー内にワークを入れてチャンバー内を真空排気して漏れによりワーク内に入ったヘリウムを検出する方法です。
![]() |
180°磁場偏向型質量分析管
1. LDS3000AQに入ってきたヘリウムはターボ分子ポンプの逆拡散現象により分析管へ到達します。
2. 分析管に到達した分子がフィラメントの電子により+イオンに変換され加速電圧により-方向に移動します。
3. +イオンが磁界を通過する事で気体の質量により軌道が分かれます。
4. +イオンを持ったヘリウムのみイオンコレクタに到達してプリアンプで電流として増幅して計測します。
各ポートを接続圧力ごとに自動で切り替えるバルブを内蔵した一体型のリークディテクターもございます。
仕様については弊社へお気軽にご相談ください。
180°磁場偏向型質量分析管
1. LDS3000に入ってきたヘリウムはターボ分子ポンプの逆拡散現象により分析管へ到達します。
2. 分析管に到達した分子がフィラメントの電子により+イオンに変換され加速電圧により-方向に移動します。
3. +イオンが磁界を通過する事で気体の質量により軌道が分かれます。
4. +イオンを持ったヘリウムのみイオンコレクタに到達してプリアンプで電流として増幅して計測します。
