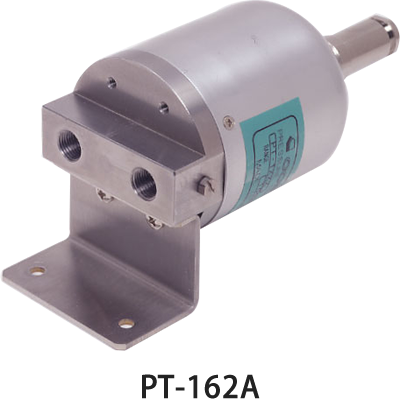

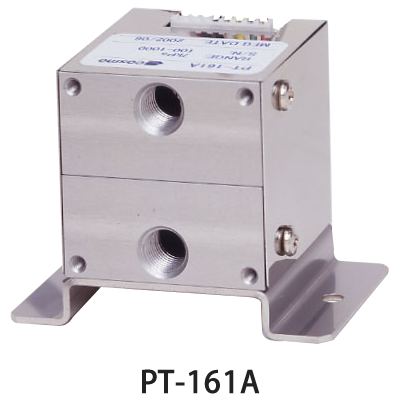

PT-161A / PT-162A
受圧部材質 | Fluoro silicone(フルオロシリコン) |
---|---|
測定流体 | PT-161A:空気または非腐食性気体 PT-162A:水・空気または非腐食性液体及び気体 |
圧力の種類 | 差圧、ゲージ圧(Loポート大気にて) |
精度 | ±0.5% of F.S.(直線性、再現性、ヒステリシスを含む) |
温度特性ゼロ | ±0.03% of F.S./℃ |
温度特性スパン | ±0.03% of F.S./℃ |
許容過圧 | 7kPa、35kPaは140kPa 100kPaは300kPa |
許容ライン圧 | 許容過圧の範囲内 |
応答速度 | 周波数応答10kHz 99%ステップ応答 0.5msec |
電源 | ±15VDC (消費電流10mA 以内) |
外観寸法 | PT-161A:(W×H×D)42×44×39mm PT-162A:(φ×D)54×76(117コネクター含)mm |
重量 | PT-161A:約185g PT-162A:約500g |
入力圧接続口径 | Rc(PT)1/8 |
使用温度範囲 | 5~40℃ |
レンジ | 0~7kPa 0~35kPa 0~100kPa |
出力電圧 | 0~5VDC ※負荷抵抗は5kΩ以上 |
信号接続 | PT-161A:2mケーブル付 PT-162A:コネクター付ケーブルなし |
オプションレンジ | 高精度±0.3% of F.S. |
付属品書類 | トレーサビリティ関係書類、取扱説明書 |

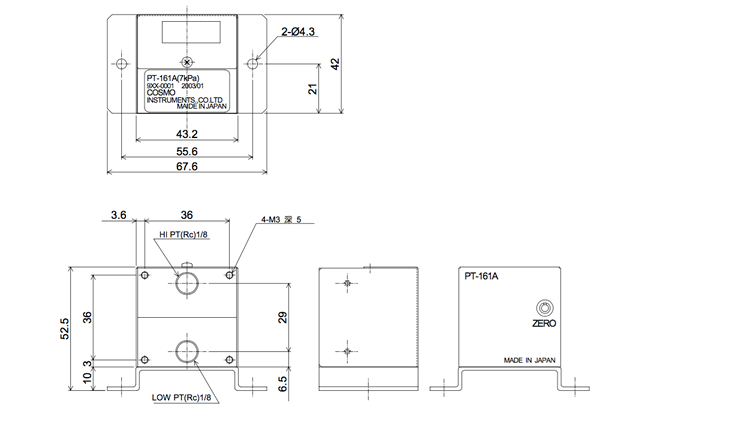

PT-161A 外観図

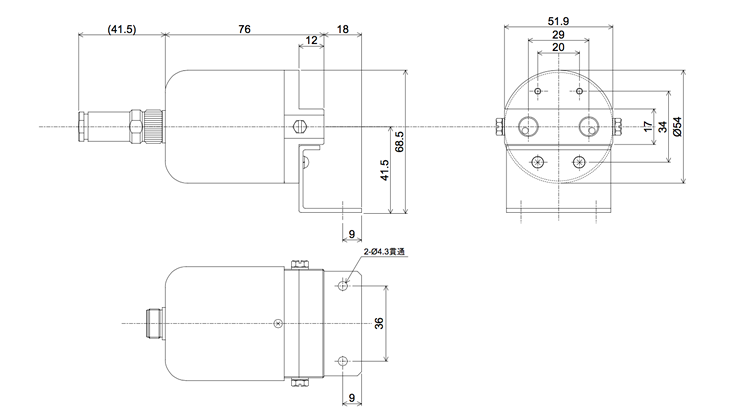

PT-162A 外観図
