DF-241BA

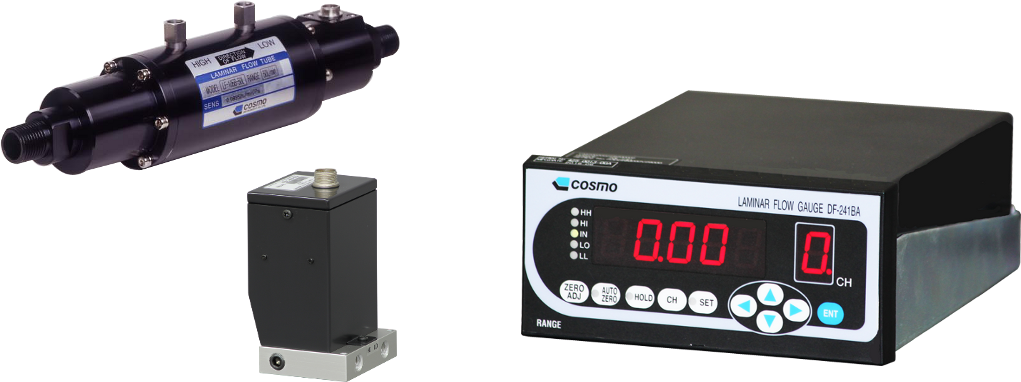

高応答で瞬時流量を捉えます。流量検査、漏れ検査を必要とする生産ライン向けの流量計です。流量センサー(層流管)、差圧センサー、多機能表示器がセットになっています。
チャンネル数 | 10チャンネル |
---|---|
上下限設定 | 4設定 HH,HI,LO,LL |
ゼロ調整 | ワンプッシュゼロ方式 |
オートゼロ | オートゼロボタン |
表示ホールド | ホールドボタン |
表示応答 | デジタルフィルター大、中、小 |
RS-232C | 標準装備1200,9600,19200bps切替 |
BCD出力 | オープンコレクター |
表示桁数切替 | 3.5桁(1999)/4.5桁(19999) |
サンプルレイト | 250ms/50ms切替 |
ユーザースパン機能 | 0.001~9.999 (出荷時1.000) |
層流管流量レンジ | 10,20,50,100,200,500 mL/min 1,2, 5,10, 20,30, 50,100, 200, 500 L/min |
---|---|
測定流体 | エアー |
精度 | ±2% of F.S.±1digit |
換算温度・気圧 | 20℃(または0℃)・1気圧換算流量表示 |
使用温度範囲 | 5~35℃ |
使用圧力 | レンジによる |
温度センサー | 層流管に内蔵または付属 |
発生差圧 | フルスケール流量時約0.6kPa |
圧力損失 | 検出差圧の150% |
接続口径 | 差圧センサーと層流管差圧接続部 Rc1/8 流量接続部は層流管測定レンジ参照 |
差圧センサー耐圧 | 1MPa(PT-110FC-A)、10kPa(PT-103B-A) |
電源 | DC24V ±10%、0.3Amax ACアダプター付属 |

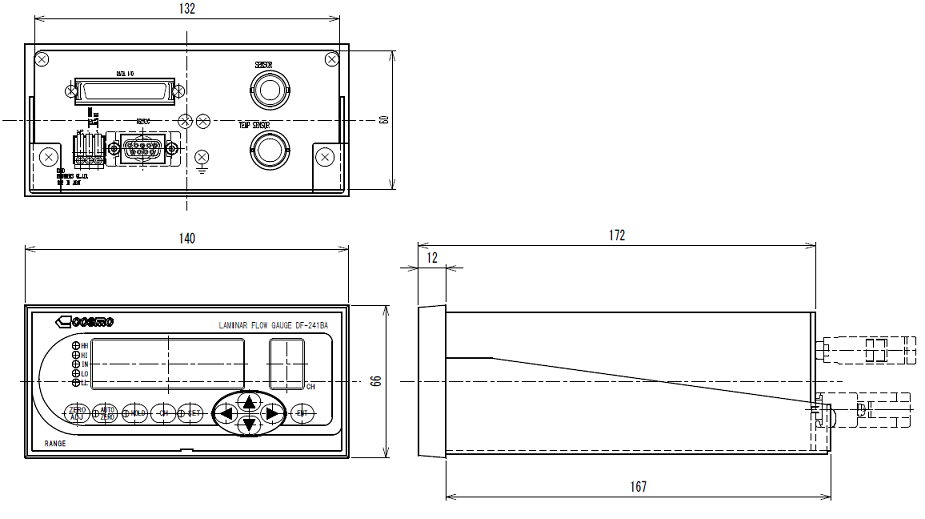

外観寸法 | 表示部 W140×H66×D172 |
パネルカット | カット寸法 W133×H61 |
付属品書類 | トレーサビリティ関係書類、取扱説明書 |
① 流量レンジ | ② ライン圧 | ③ オプション | ④ 電源電圧 | ⑤ 換算温度 | |||||
---|---|---|---|---|---|---|---|---|---|
記号 | 単位 | 記号 | 単位 | 記号 | 内容 | 記号 | 内容 | 記号 | 内容 |
□□ ML |
□□ mL/min |
□□ KP |
□□ kPa |
B | 低テスト圧用センサー*1 | VG | ACアダプタ 100Vケーブル3m |
S | 20℃換算 |
□□ L |
□□ L/min |
□□ MP |
□□ MPa |
F1 | アナログ出力5V | VH | ACアダプタ 240Vケーブル2m |
N | 0℃換算 |
F2 | アナログ出力10V | VJ | ACアダプタなし | ||||||
F3 | 表示と同じ |
*1:低テスト圧用センサー(PT-103B-A)はテスト圧10kPa以下です。
層流管型式 | 流量レンジ(大気圧下) | 最大使用 ライン圧 |
接続口径 | 温度センサー |
---|---|---|---|---|
LF-104 N – 10C | 0~10 mL/min | 990kPa | R1/4 | 内蔵 |
LF-104 N – 20C | 0~20 mL/min | |||
LF-104 N – 50C | 0~50 mL/min | |||
LF-104 N -100C | 0~100mL/min | |||
LF-104 N -200C | 0~200mL/min | |||
LF-104 N -500C | 0~500mL/min | |||
LF-104 N – 1L | 0~1 L/min | 700kPa | ||
LF-104 N – 2L | 0~2 L/min | |||
LF-104 N – 5L | 0~5 L/min | |||
LF-104 N – 10L | 0~10 L/min | 500kPa | R1/2 | |
LF-104 N – 20L | 0~20 L/min | |||
LF-104 N – 30L | 0~30 L/min | |||
LF-105B N – 50L | 0~50 L/min | 350kPa | ||
LF-105B N -100L | 0~100 L/min | |||
LF2-200L | 0~200 L/min | 50kPa | R3/4 | 付属 |
LF2-500L | 0~500 L/min |
