Cosmo Calculation Equations for Air Leak Testing

Calculation Sheet on the Web

Three types of calculations are available.
For more diverse calculations, use the Cosmo Calculation Sheet.
To select a suitable Leak Master (LM-1C-J1 series), use the Leak Master Selection.

① Calculation of Equivalent Internal Volume/Detection Time/Differential Pressure/Leak Rate
② Gas Leak Rate Comparison (In case of the same Gas)
③ Gas & Liquid Leak Rate comparison
④ Leak Master Selection

【How to use】
・Enter single-byte numbers in all white boxes.
・Press the Calculation button to display the result in the gray box.
・When the Delete button is displayed, pressing it will erase all input values and results.

Calculation of Equivalent Internal Volume/Detection Time/Differential Pressure/Leak Rate

C-tool_01_E



Gas Leak Rate Comparison (In case of the same Gas)

C-tool_02_E



Gas & Liquid Leak Rate comparison

C-tool_03_E



Leak Master Selection

Calculate the differential pressure values for the leak rates shown in the LM-1C-J1 Series Data Table below.

【How to use】
・Enter values for Equivalent Internal Volume/Detection Time in single-byte numbers.
・Select the value for Test Pressure from the drop-down.
・Calculation result will be automatically displayed.
・For measuring the equivalent internal volume, a Leak Master that generates a differential pressure (Pa) of 100 to 500 Pa is suitable.

C-tool_01_E



C-tool_04-2_E

Use the calculation results of this system just as reference values.
We are not responsible for any problem or trouble caused by the calculation results.

Cosmo Calculation Sheets

pic_sheet01

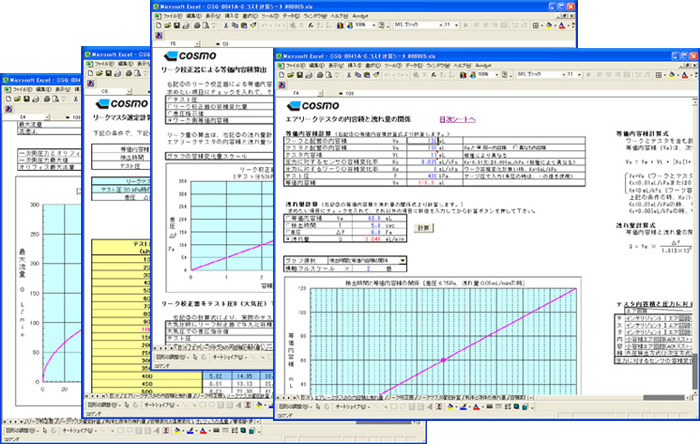

Cosmo Calculation Sheets are multifunctional calculation sheets made in Excel.
Just enter the conditions, and solutions such as the leak rate and the volume equivalent are displayed.
Cosmo Calculation Sheets consist of the following seven calculation sheets.

  • 1. Internal volume and leak rate of air leak testers
  • 2. Leak calibrators
  • 3. Calculations for selecting a leak MASTER
  • 4. Leak rates of gases and liquids
  • 5. Volume and temperature changes
  • 6. Orifice flow
  • 7. Laminar flow tube and flow rate conversion

Download Cosmo Calculation Sheets for free

Cosmo Calculation Sheets can be downloaded and used free of charge by registering from the link below.
<Requirements>

  • Excel97～Excel2012
  • Uses macro features.
  • It is for Windows.

Download for free here
